SAFETY WARNING: ⚠️ Always ensure your vehicle is parked on a safe, flat surface, the parking brake is firmly engaged, and the engine is OFF before beginning any procedure. Only turn the ignition to the ON (ACC) position (do not start the engine). If you are unsure about any steps, consult a professional technician.
⚠️ SPECIAL NOTE: Certain models (e.g., some BMW, Mercedes-Benz) require the master key fob to be present to access the TPMS relearn procedure. A spare key may not work.
The Quick Diagnostic: Start Here
Are you seeing a tire pressure light but your tires are fine? You’re not alone. In most cases, your Tire Pressure Monitoring System (TPMS) needs a TPMS relearn procedure to reset and restore normal function.
Instead of guessing, use this quick diagnostic table to identify the issue and the correct next step:
Core Principle: Why is the TPMS Light On?
- Solid Light → Low tire pressure OR new sensors have not been matched to the vehicle.
- Flashes, then Stays Solid → Sensor battery is dead, a sensor is faulty, a relearn was unsuccessful, or there is a receiver/ECU issue.
🔧 Pre-Procedure Checklist:
- Check all tires (including spare) are inflated to the recommended pressure.
- Verify new sensor frequency (315MHz or 433MHz) matches your vehicle.
- Confirm new sensor protocol is compatible.
- Turn the ignition to the ON (ACC) position (do not start the engine).
The Four Methods for TPMS Relearn Procedure
Method Comparison Overview
| Method | Equipment Needed | Common Vehicle Applications* | Difficulty | Pros | Limitations |
|---|---|---|---|---|---|
| Auto Relearn (A) | ❌ None | Many European & US models (Mercedes, Audi, VW, Jeep, Dodge, Porsche) + some Asian | ⭐ Easiest | No tools needed, drive to learn, DIY friendly | Must be supported by the vehicle |
| Stationary Relearn (S) | ✅ Trigger Tool | GM (Chevrolet, Buick, GMC, Cadillac) + Ford | ⭐⭐ Medium | Very fast, no diagnostic tool required | Requires trigger tool, precise sequence |
| OBD Relearn (O) | ✅ Professional Diagnostic Tool | Toyota, Lexus, Honda, Nissan + most European models | ⭐⭐⭐ Hard | Reliable for new sensors, highly accurate | Expensive equipment, shop recommended |
| Cloning (C) | ✅ Programmer + Programmable Sensor | Virtually any vehicle | ⭐⭐ Medium | Fastest, plug-and-play, no relearn needed | Old ID must be available and readable |
Based on 14,802 vehicle records: ~43.9% of model years support two or more methods (A/O, O/S most common). Always confirm with the database below.

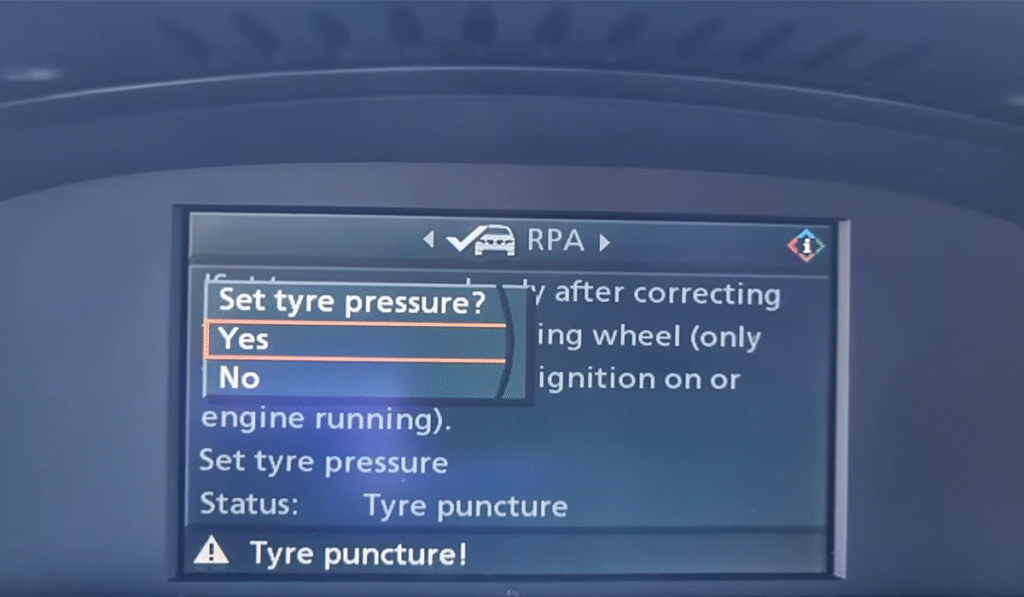

Method 1: Auto Relearn (Auto Learn)
Steps:
- Turn ignition to ON.
- Press and hold the TPMS Reset button (or use instrument cluster menu).
- TPMS light will blink 2-3 times, then release.
- Drive for 10–20 minutes at steady speed above 25 mph (40 km/h).
👉 Best for: DIY users, seasonal tire swaps, or rotations.
Method 2: Stationary Relearn (Stationary Learn)

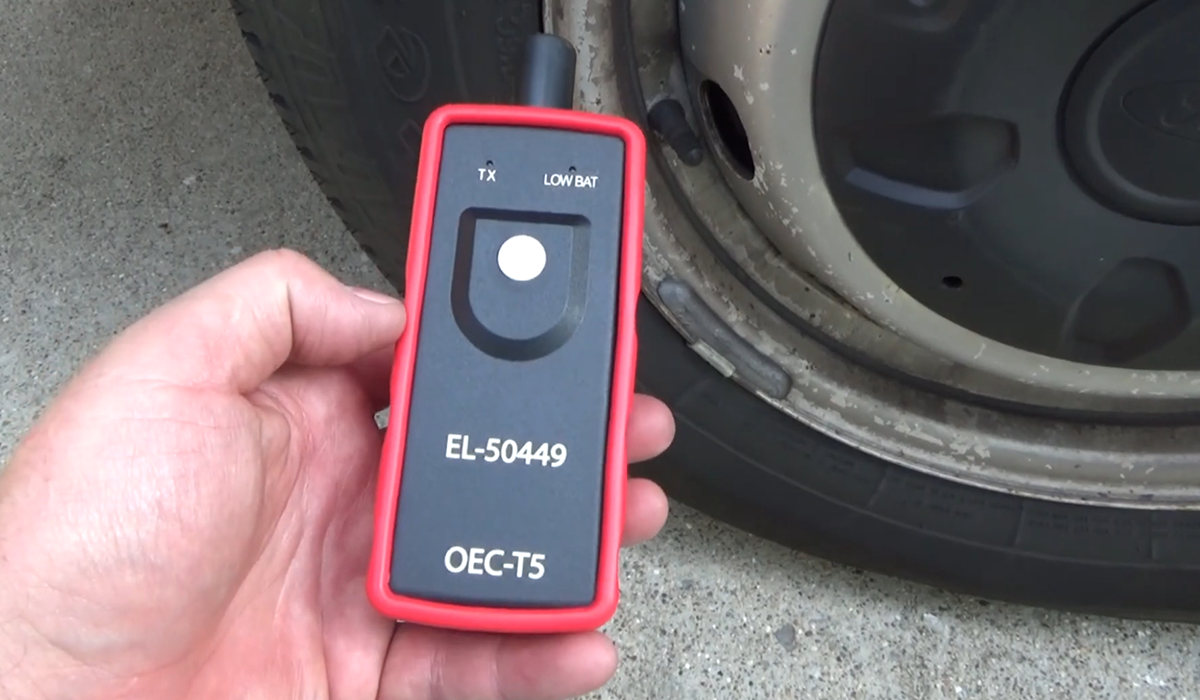

Equipment Needed: OEM Trigger Tool (GM EL-50448/50449).
Steps:
- Turn ignition to ON and enter “TPMS Relearn” mode.
- Horn chirp confirms learning mode.
- Hold trigger tool against sidewall opposite valve stem until horn chirps.
- Order: Left Front → Right Front → Right Rear → Left Rear.
- Final horn chirp = success.
👉 Best for: GM/Ford owners, quick in-shop resets.
Method 3: OBD Relearn (OBD Learn)
Equipment Needed: Professional diagnostic tool (Autel MaxiSys, Launch, ATEQ VT56).
⚠️ Note: Basic OBD2 readers cannot do this. Professional-grade tools only.
Steps:
- Connect diagnostic tool to OBD-II port.
- Navigate to TPMS menu and select make/model/year.
- Choose Sensor Registration / ID Learn.
- Tool reads or enters sensor IDs.
- Tool writes IDs into ECU.
👉 Best for: New sensor installations. Covers 95% of replacement cases.

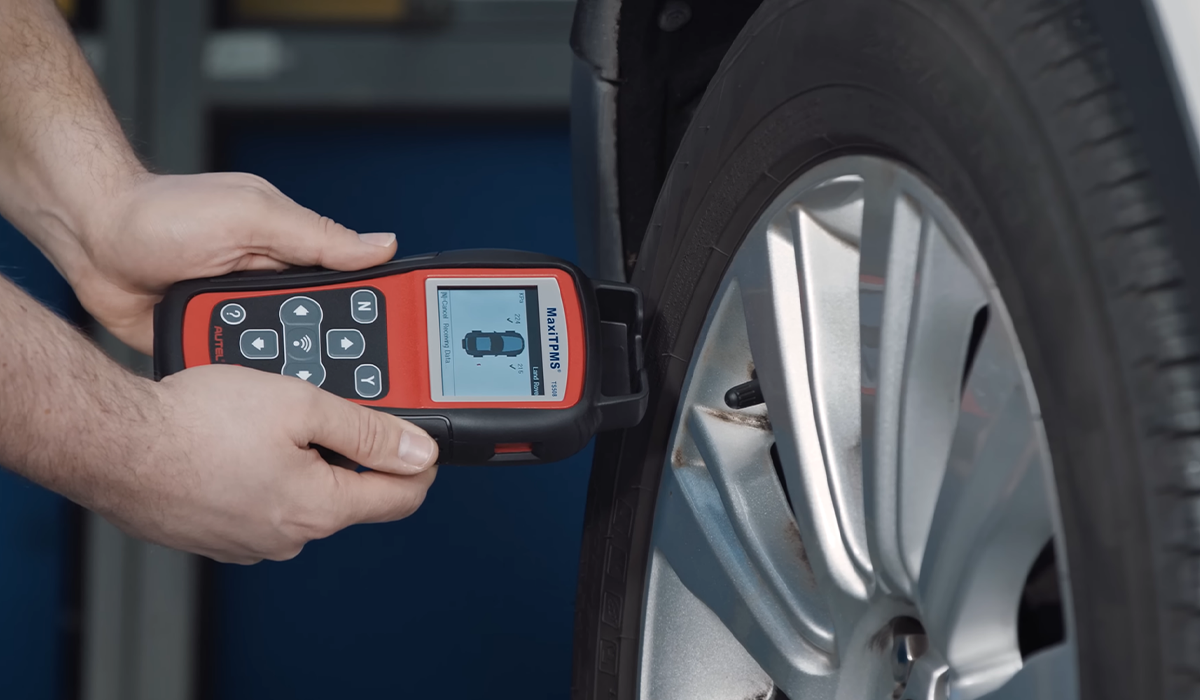

Method 4: Cloning
Equipment Needed: TPMS programmer + programmable sensor.
Steps:
- Read ID from old sensor with programmer.
- Copy ID to new programmable sensor.
- Install new sensor — vehicle recognizes it instantly.
👉 Best for: Fastest fix if old sensor ID can be read.
Choosing the Right Method
If multiple methods apply (A/O, O/S):
- Tire rotation or seasonal change → Auto (A).
- Replaced a sensor → OBD (O).
- Fastest turnaround → Cloning (C).
- If one fails → Verify frequency/protocol, retry another method.
Vehicle Examples & TPMS Relearn Procedure Database
👉 “Check your vehicle’s matching method in the table database below.”
⚠️ Always confirm using the VIN-specific database.
TPMS Relearn Problem & Solution Chart
| Symptom | Likely Cause | Fix |
|---|---|---|
| Light Keeps Blinking | Incomplete relearn, weak signal | Retry procedure, ensure correct trigger tool position |
| Solid Light | Dead sensor battery | Replace sensor |
| New Sensor Not Recognized | Wrong frequency, ID not registered, sensor not activated | Register with diagnostic tool, activate sensor |
| Relearn Fails | Wrong steps or ECU fault | Double-check procedure, scan for fault codes |
Frequently Asked Questions (FAQ)
Q1: Can I replace just one TPMS sensor?
A: Yes. But replacing sensors in pairs or all four saves future labor since lifespans are similar.
Q2: How long until the light goes off?
A: Usually 15–20 minutes of driving above 25 mph (40 km/h).
Q3: Is it safe to drive with the TPMS light on?
A: Yes, if tire pressures are correct. But you lose the safety warning feature.
Q4: Are aftermarket sensors reliable?
A: Yes, if they match frequency/protocol. Check our compatible TPMS sensors here.
Q5: How much does a TPMS sensor cost?
A: OE: $50–150. Aftermarket: $30–80. See our TPMS sensor catalog.
Q6: Why did my light turn off the next day?
A: Some ECUs need multiple drive cycles to confirm stable data.
The Bottom Line: Your Action Plan

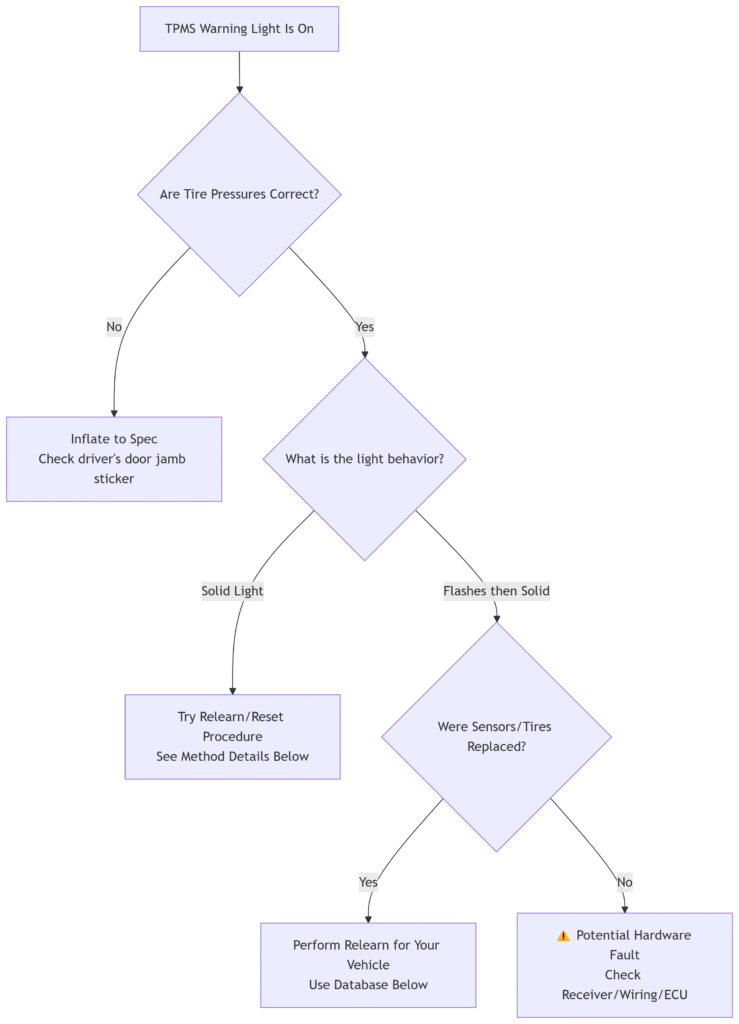

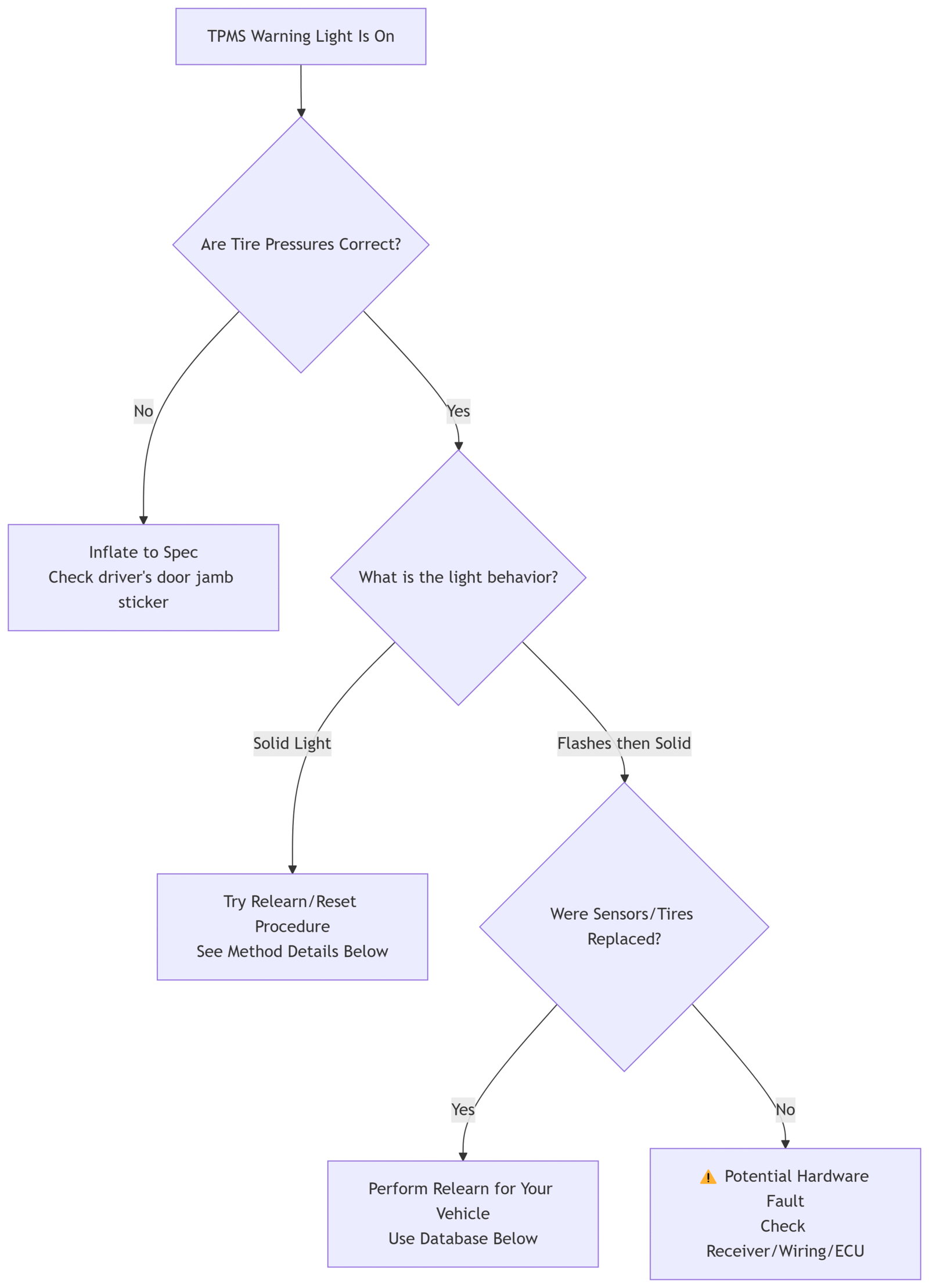

- Diagnose with the Flowchart:
Use the flowchart above to diagnose the issue with the TPMS light. - Confirm using our TPMS Relearn Tool:
Confirm your vehicle’s specific TPMS relearn procedure through the database or tool. - Execute the Steps:
- Auto Relearn (A) → For tire rotation or seasonal tire swaps.
- Stationary Relearn (S) → For GM/Ford vehicles with a trigger tool.
- OBD Relearn (O) → For new sensor installations.
- Cloning (C) → The fastest method if applicable.
- Troubleshoot using the Solution Chart:
If issues arise, use the solution chart to resolve them.
👉 Find Your Vehicle’s TPMS Relearn Procedure Now.
If you are unable to resolve the issue, feel free to Contact Us for further support.
Additional Information
📌 Last Updated: September 2025
📌 Copyright Notice: Based on OEM repair manuals and a database of 14,802 vehicle records.
