Introduction
TPMS sensor lifespan is one of the most common concerns for car owners. The Tire Pressure Monitoring System (TPMS) is a critical part of modern vehicle safety. By continuously monitoring tire pressure and temperature, TPMS reduces risks such as blowouts and instability caused by abnormal tire pressure.
According to the U.S. National Highway Traffic Safety Administration (NHTSA, 2021), vehicles equipped with TPMS reduce accidents caused by under-inflated tires by more than 56%. With global regulatory enforcement, TPMS has become a standard feature in all new vehicles.
One of the most common questions drivers ask is: What is the TPMS sensor lifespan? Can the battery be replaced? When should the sensor be changed?
This article provides a complete analysis of TPMS sensor lifespan, the main factors that affect it, failure signs, and replacement guidance.
Overview of TPMS Sensor Lifespan
According to NHTSA and industry research, the typical TPMS sensor lifespan is 5–8 years, or about 80,000–100,000 km.
| Sensor Type | Average Lifespan | Recommended Replacement |
|---|---|---|
| OEM (factory-fitted) | 7–10 years | Every 5–6 years or with new tires |
| Premium aftermarket | 5–7 years | Every 4–5 years |
| Budget aftermarket | 3–5 years | Every 3–4 years |
Driver Note: After 5–6 years, you should start monitoring TPMS sensor lifespan closely and consider replacement with your second set of tires.
Key Factors Affecting TPMS Sensor Lifespan
1. Built-in Lithium Battery – The Decisive Factor
- Most sensors use non-replaceable lithium batteries. Once depleted, the TPMS sensor lifespan ends.
- Sealed design: Ensures water/dust resistance. ⚠️ Forcing a battery replacement breaks the seal and can damage the circuit, which shortens TPMS sensor lifespan.

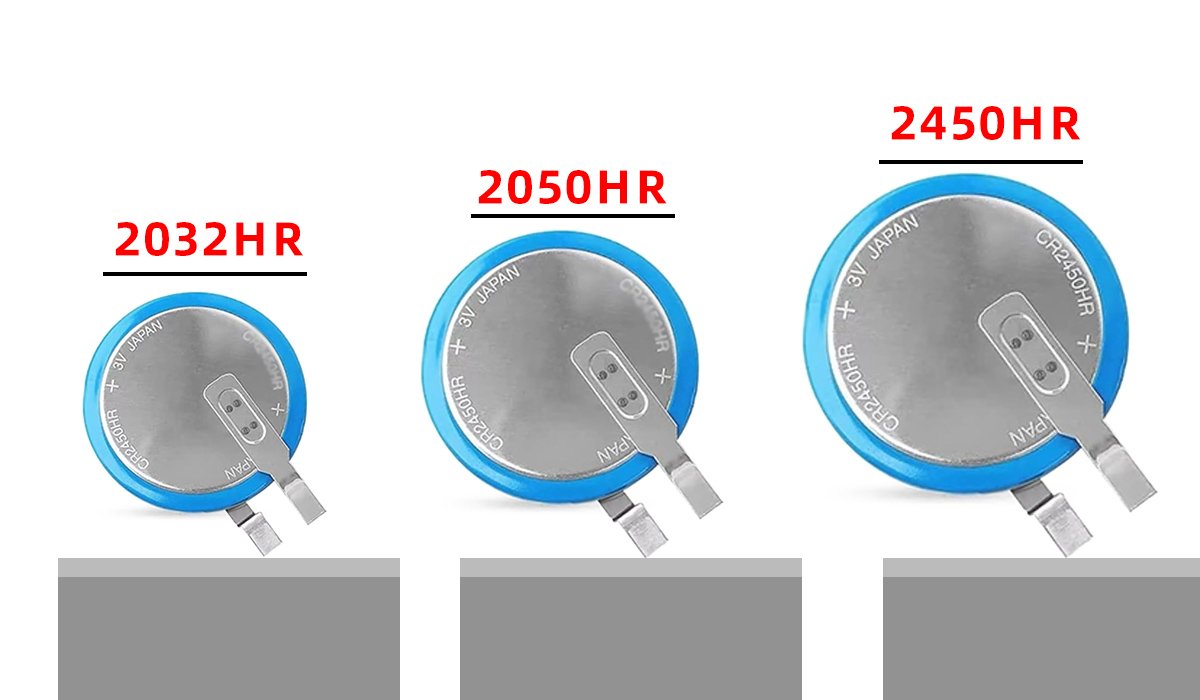

- Battery capacity differences:
- CR2032: lifespan ~ 5–8 years
- CR2050: lifespan ~ 6–10 years
- CR2450: lifespan ~ 9–15 years
| Battery Model | Size (Diameter × Thickness) | Capacity (mAh) | Lifespan Range | Notes |
|---|---|---|---|---|
| CR2032 | 20mm × 3.2mm | ~220 | 5–8 years | Common in budget sensors |
| CR2050 | 20mm × 5.0mm | ~350–400 | 6–10 years | Mid-range option |
| CR2450 | 24.5mm × 5.0mm | ~550 | 9–15 years | OEM standard, longest lifespan |
Key Insight: Larger batteries don’t always equal longer service life. Performance also depends on sensor design, transmission frequency, and power management.
➡️ Related reading: TPMS Battery Knowledge Explained
2. Operating Environment
- High temperature: Summer tire temps can reach 70°C, accelerating battery aging and reducing TPMS sensor lifespan.
- Low temperature: Below –20°C, battery efficiency drops, weakening signals.
- Shock and vibration: Frequent rough-road driving increases stress on sensors.
Key Insight: Extreme heat, cold, and vibration significantly affect TPMS sensor lifespan.
3. Driving Habits and Tire Pressure
- Long-term parking: Even in sleep mode, batteries slowly drain.
- Frequent high-speed driving or hard braking: Causes thermal cycling, stressing sensors.
- Low tire pressure: Frequent alerts accelerate battery drain.
- Over-inflation: Under high heat, accelerates battery and seal aging.
Driver Note: Keeping tire pressure within ±10% of the manufacturer’s specification is essential to prolong TPMS sensor lifespan.
4. Product Quality Differences
- OEM sensors: Meet AEC-Q100 automotive certification, offering stable longevity.
- Cheap aftermarket: Smaller batteries and poor sealing significantly reduce overall lifespan.
Signs of Expired Sensor Life

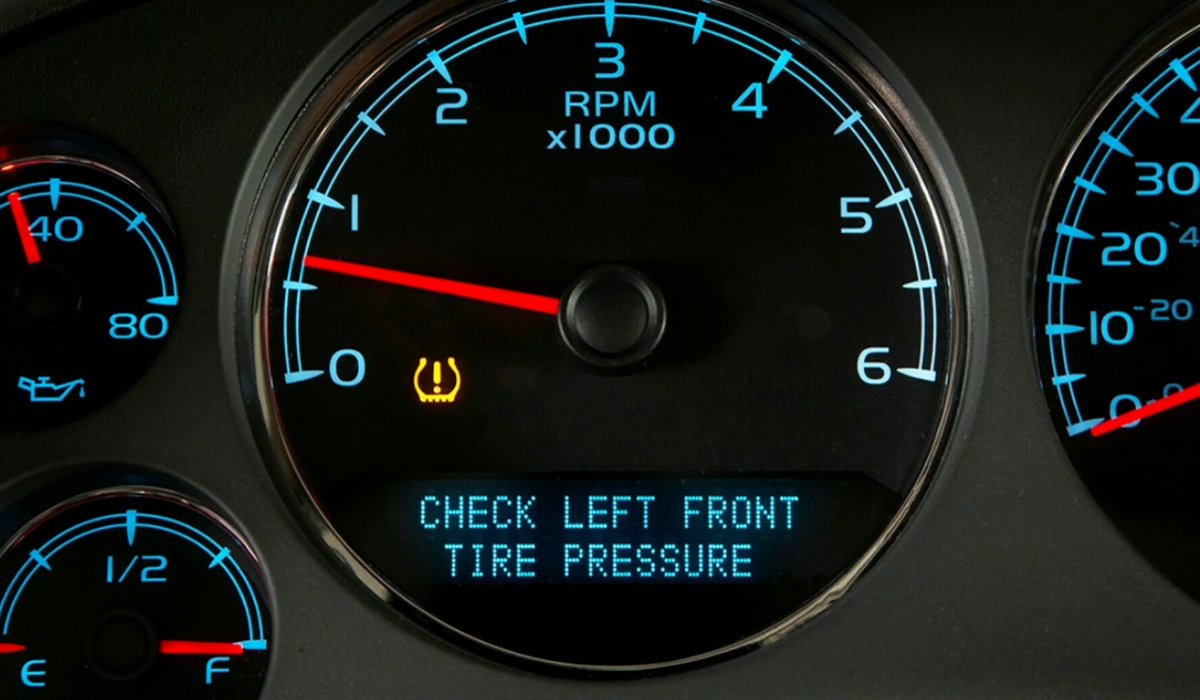

- TPMS warning light remains on.
- One or more tires show no data on the dashboard.
- Tire pressure readings are inaccurate or delayed.
- Intermittent signal loss caused by low battery.
Driver Note: A simple test is to deflate a tire slightly. If dashboard pressure values don’t change for a long time, the TPMS sensor lifespan has likely ended.
How to Extend Sensor Longevity
- Check tire pressure standards monthly and maintain correct inflation.
- Use professional technicians for tire mounting to prevent damage.
- Drive regularly to avoid deep sleep and standby drain.
- Choose FCC/CE-certified sensors and reputable brands.
- Every 2 years, test voltage with diagnostic tools to monitor TPMS sensor lifespan proactively.
Replacement Timing
- Usage over 5–6 years with frequent alerts.
- Low voltage or unstable signals.
- ECU fails to detect one or more sensors.
- Replace sensors when changing your second tire set to save ~40% labor costs.
Key Insight: After 5 years, the TPMS sensor lifespan is in its high-failure phase.
➡️ Related reading: TPMS Warning Light Issues Explained
Industry and Technology Trends
- Battery-free design: Harvesting vibration or RF energy may push sensor life beyond 10 years.
- Multi-functional sensors: Monitor tire wear, load, and temperature.
- Regulations: By 2027, the global TPMS market is projected to reach $13 billion.
Conclusion
- Typical service life is 5–8 years; OEM CR2450 designs may reach 9–15 years.
- Batteries are not replaceable due to sealed construction.
- Best practice: plan replacement after ~5 years or with the second set of tires.
➡️ Further reading: TPMS Sensor Replacement Guide
Professional Technician Tips
- Battery voltage check: With tools like ATEQ VT56 or Autel MaxiTPMS, <2.5V indicates end-of-life is near.
- ECU learning: After replacement, perform ID programming/learning to ensure proper recognition.
FAQ: TPMS Sensors & Maintenance
1. Can I replace a TPMS sensor battery?
Answer: No. Sensors are sealed; forcing a battery swap risks damage and water ingress.
2. Does a larger battery always mean longer life?
Answer: Not necessarily. While CR2450 offers more capacity, system compatibility and firmware strategy matter.
3. Does under- or over-inflation affect longevity?
Answer: Yes. Under-inflation triggers frequent transmissions; over-inflation in heat accelerates aging.
4. How to avoid damage during service?
Answer: Use trained technicians and avoid impacts near the valve-stem module.
5. When should sensors be replaced?
Answer: Usually after 5–8 years or when persistent alerts/learning failures occur.
Data Sources
Data referenced from NHTSA reports (2021), SAE technical papers, TÜV tests, and industry white papers.
Additional authority: NHTSA TPMS Information.
